Replacement Kobe Crusher
Project: Remove & replace existing Allis Chalmers crusher including design, fabrication & installation of replacement discharge throat liner.
Problem: Planning for future expansion had highlighted potential reliability issues with the existing primary crusher. In addition even at current production levels the client was experiencing premature wear of the existing discharge throat liners.
Solution: Our client sourced a replacement crusher from Kobe Japan and subsequently awarded ESI Alphatec a contract to remove the existing crusher, design, and fabricated replacement discharge throat liner system and install both the new liner & crusher. Our field service crew including containerised workshops were dispatched to our client’s site to execute the project during a 28 day shutdown.

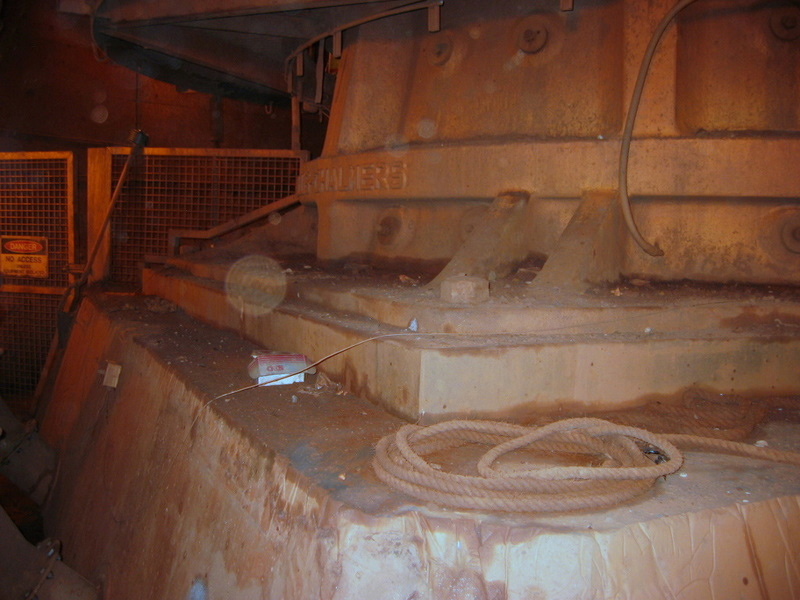

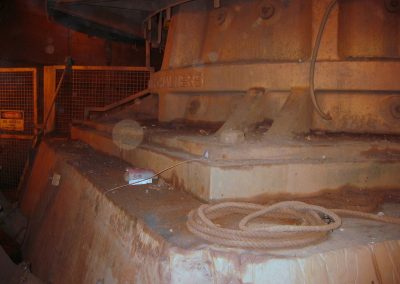

Original Crusher Installation
Original Crusher Installation

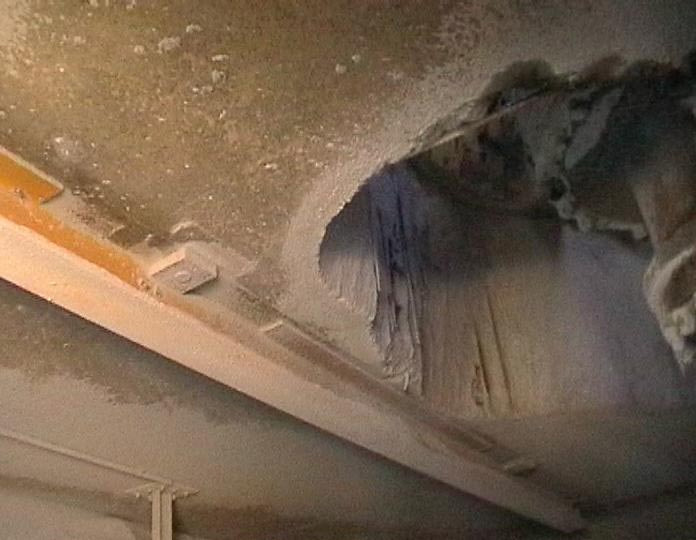

Worn Discharge Throat (photo for illustration only)

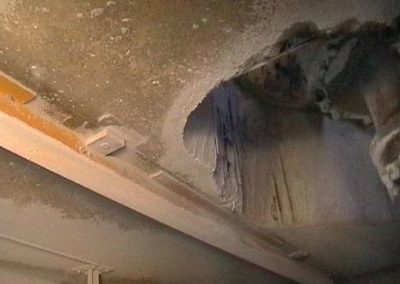

Worn Discharge Throat (photo for illustration only)

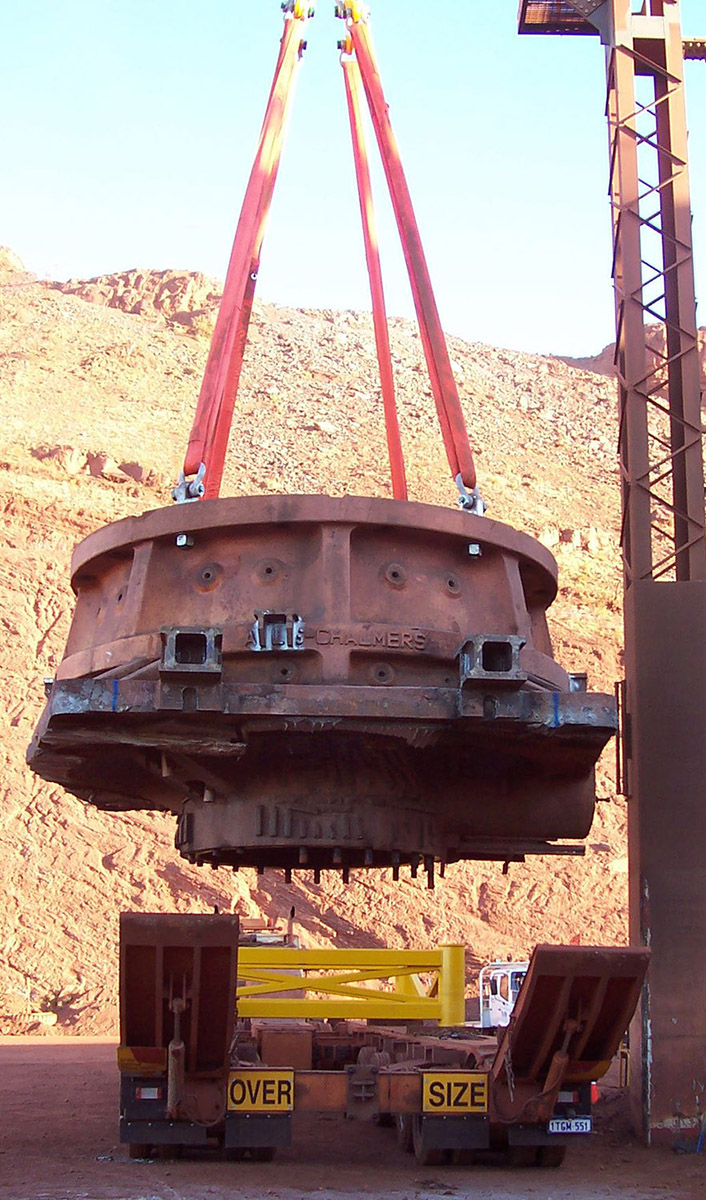

Lower Sheel onto Lowloader
Disassembly & Removal of Existing Crusher

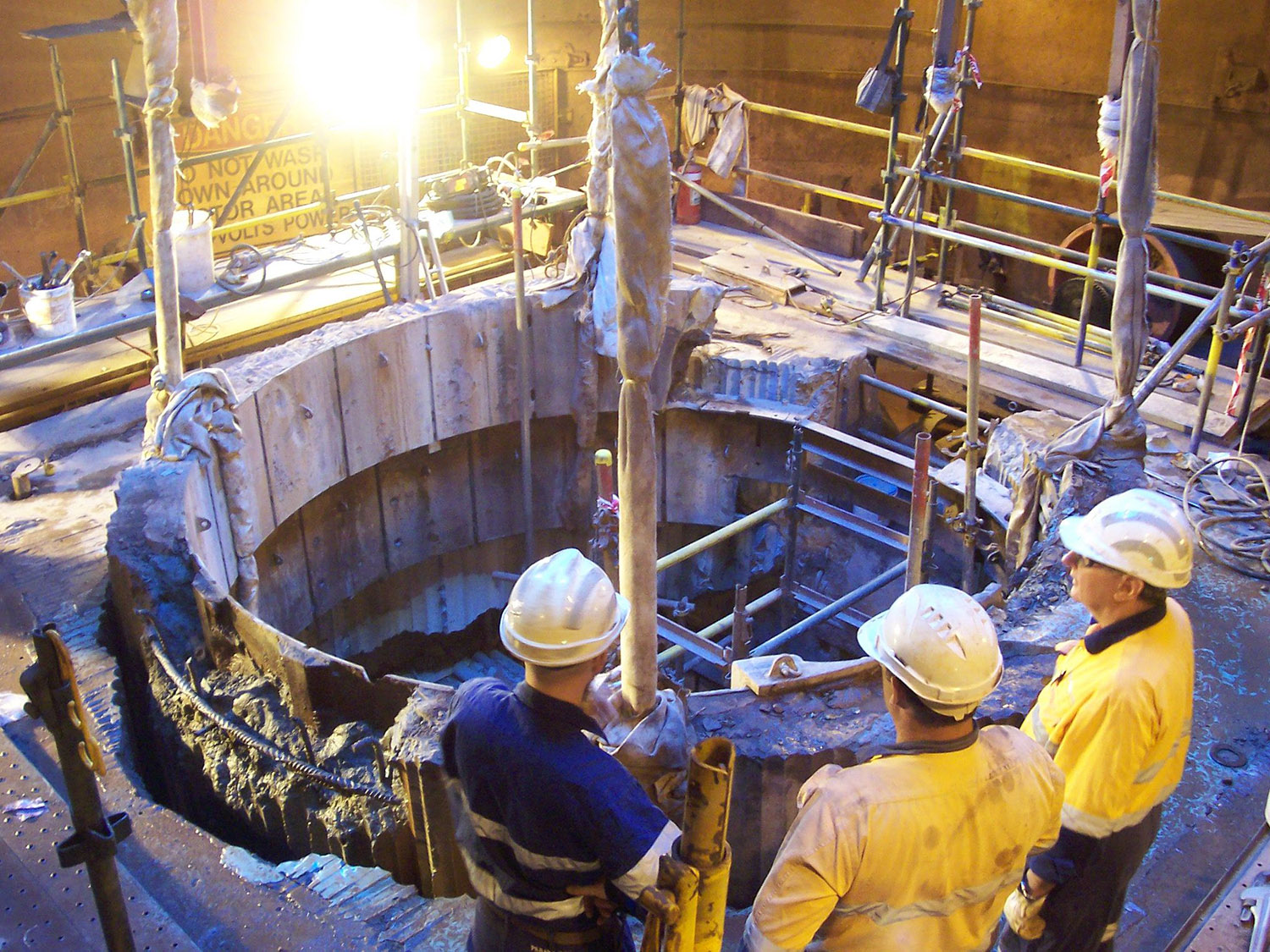

Removal Existing Throat Liner
Specialist Concrete Cutting & Removal of Existing Discharge Throat Liner

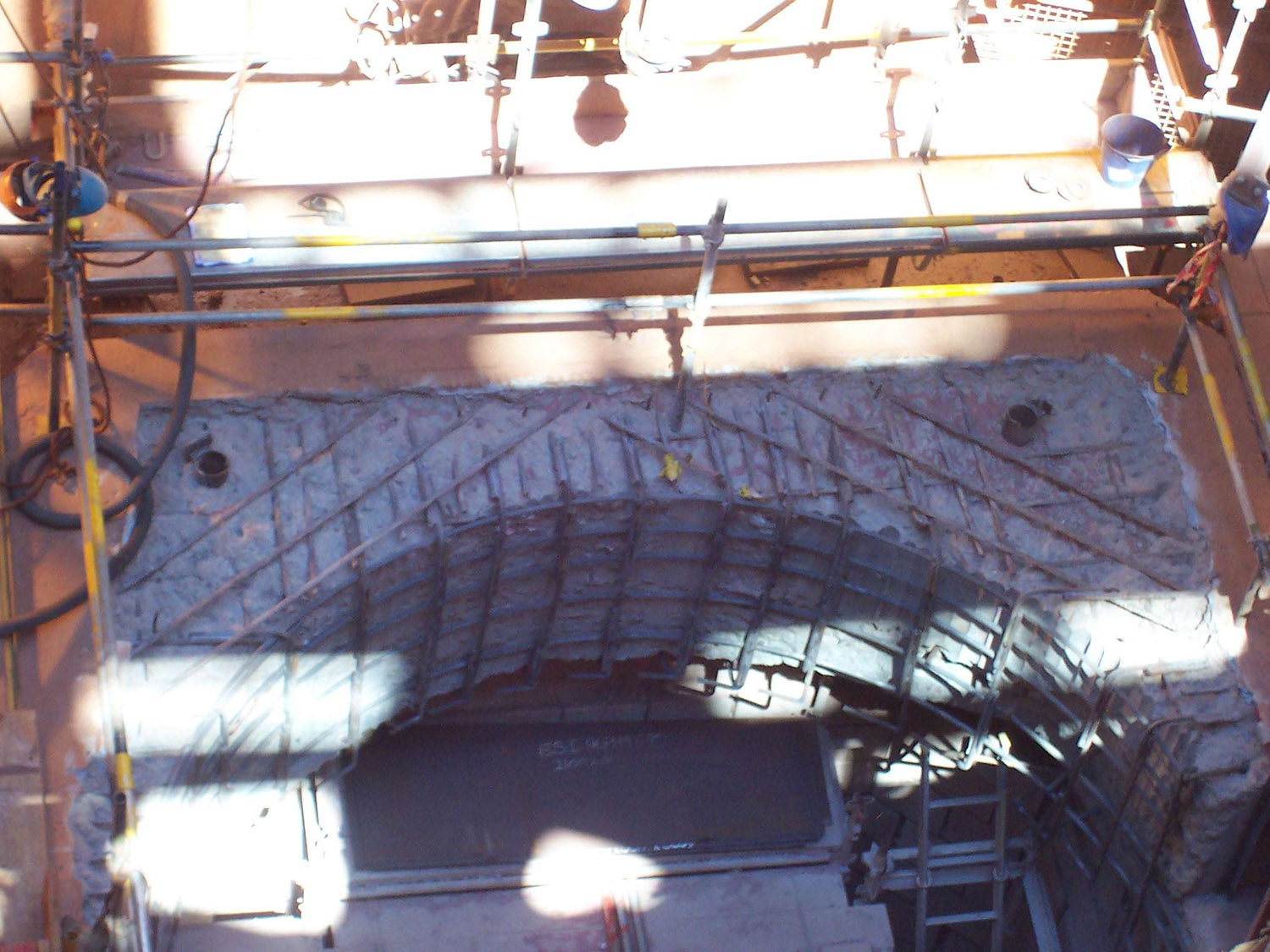

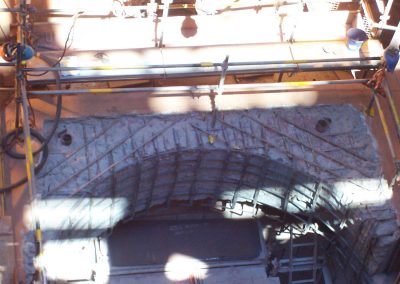

Crusher Foundation & Discharge Throat Preparations
Preparation of Crusher Foundation Ready for New Discharge Liner System

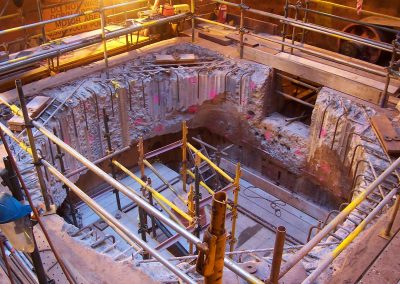

Primary Crusher Foundation & Discharge Throat Repair Stage 2
New Wear Liner System Installed & Ready for Final Grouting

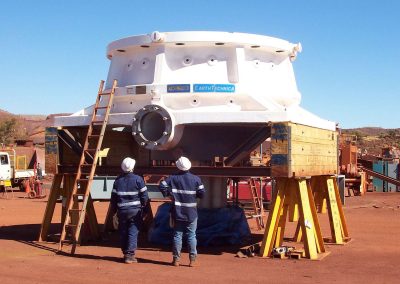

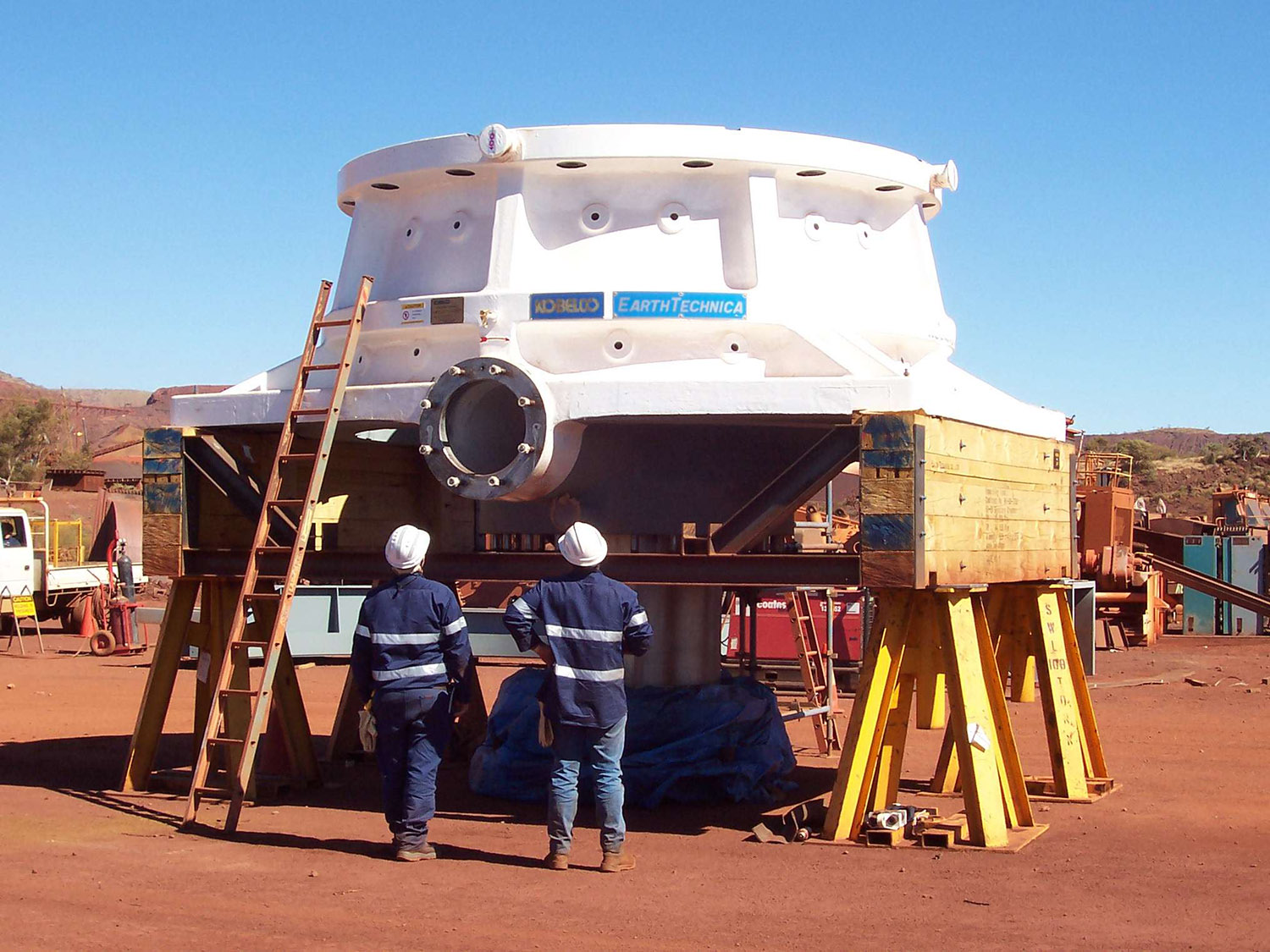

Preparation of New Kobe Crusher Lower Shell
New Kobe Crusher Ready for Installation

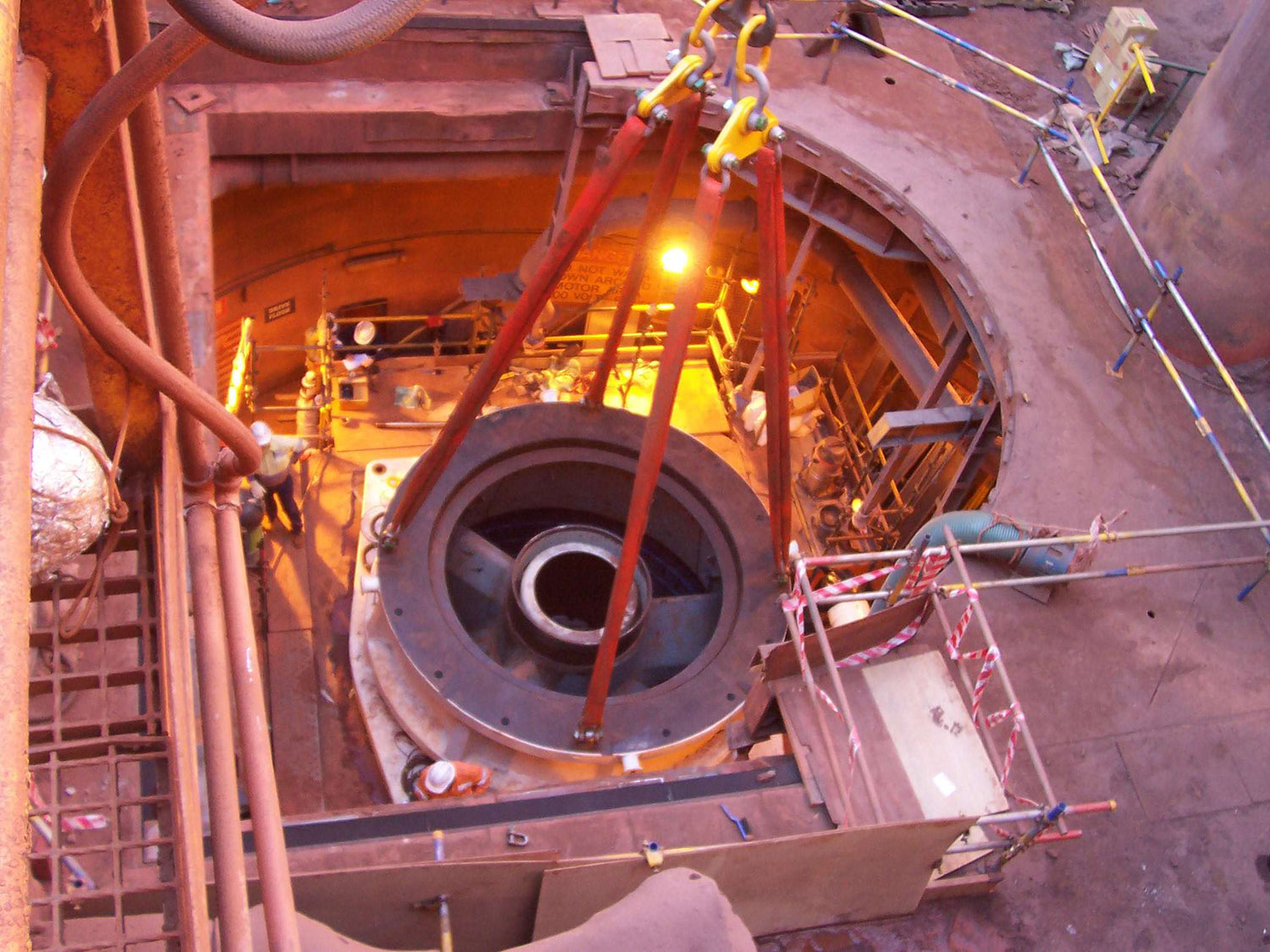

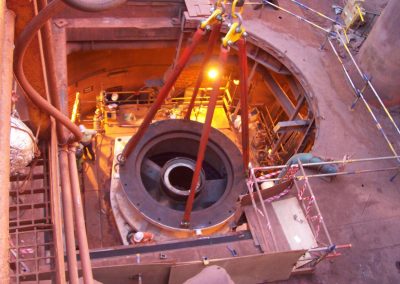

Installation of New Kobe Crusher Lower Shell
New Kobe Crusher Being Installed

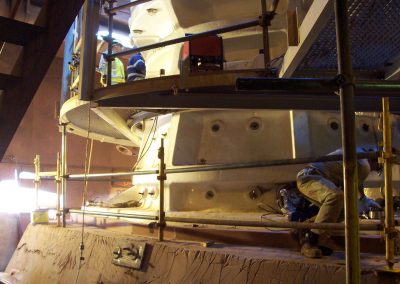

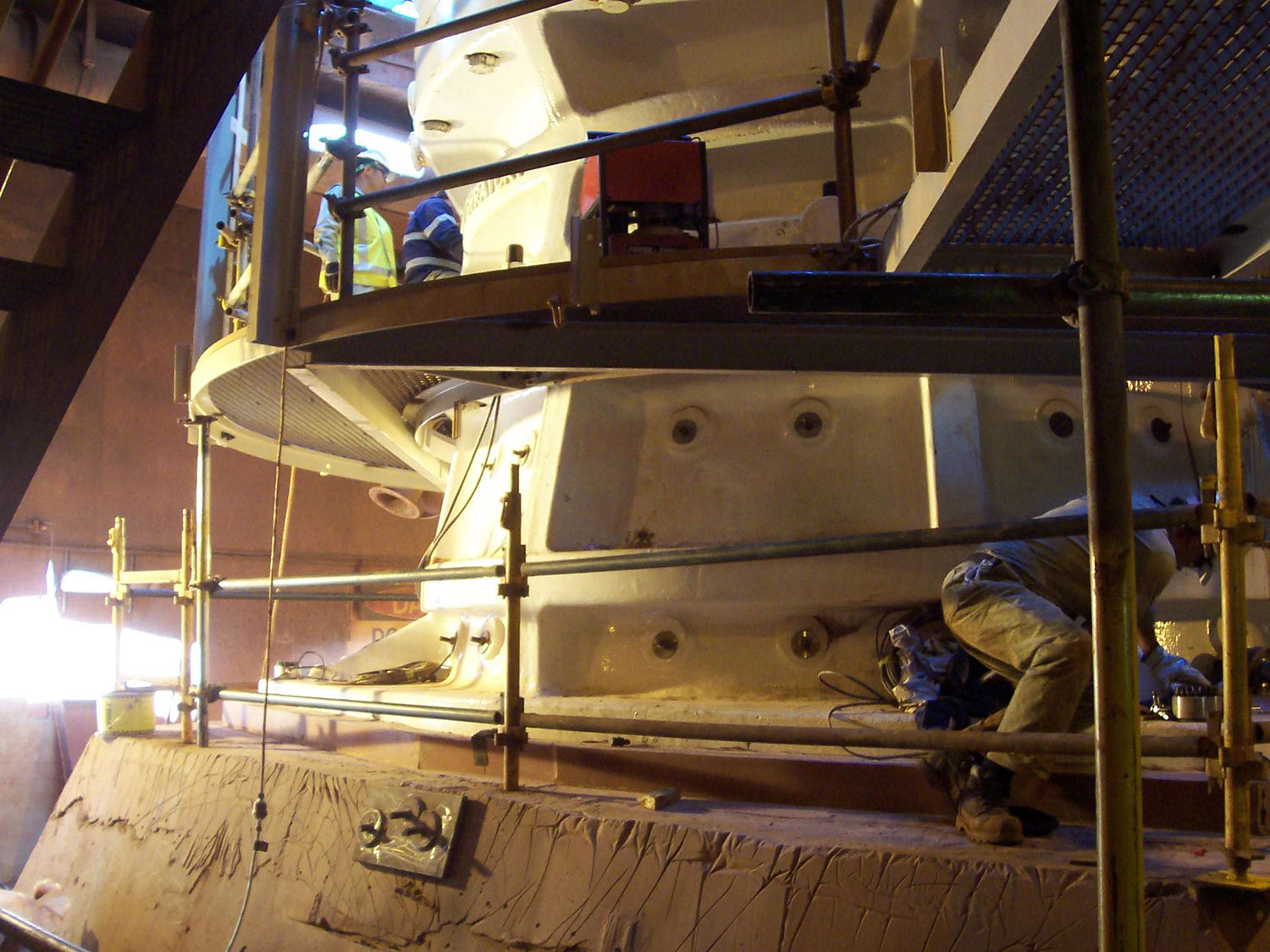

New Kobe Crusher Aligned & Grouted
Completion & Commissioning

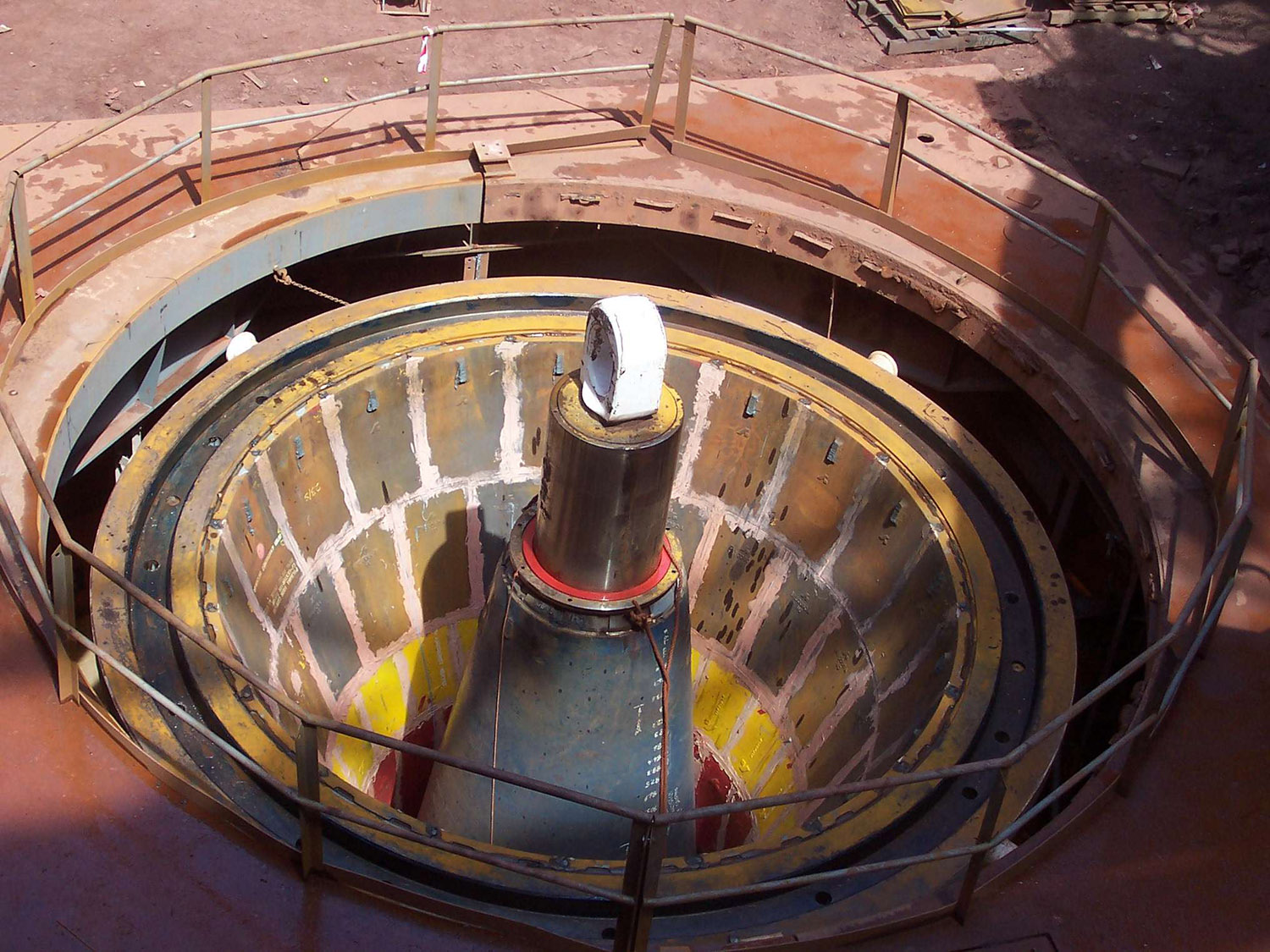

New Kobe Crusher Top Shell & Mantel
New Kobe Crusher Top Shell & Mantel
